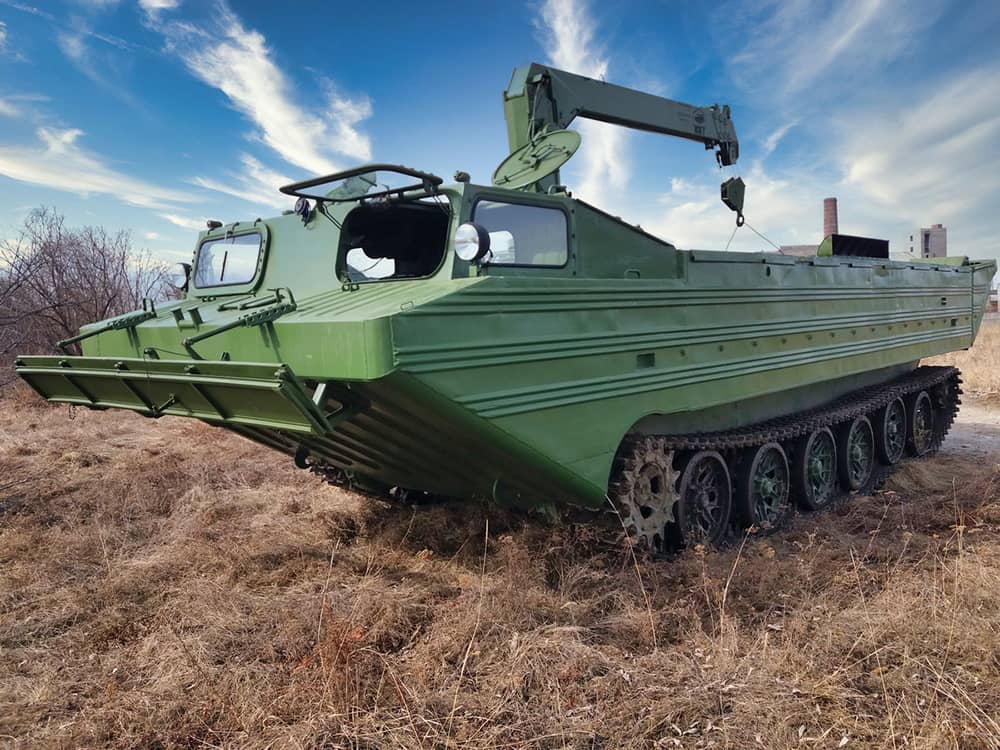

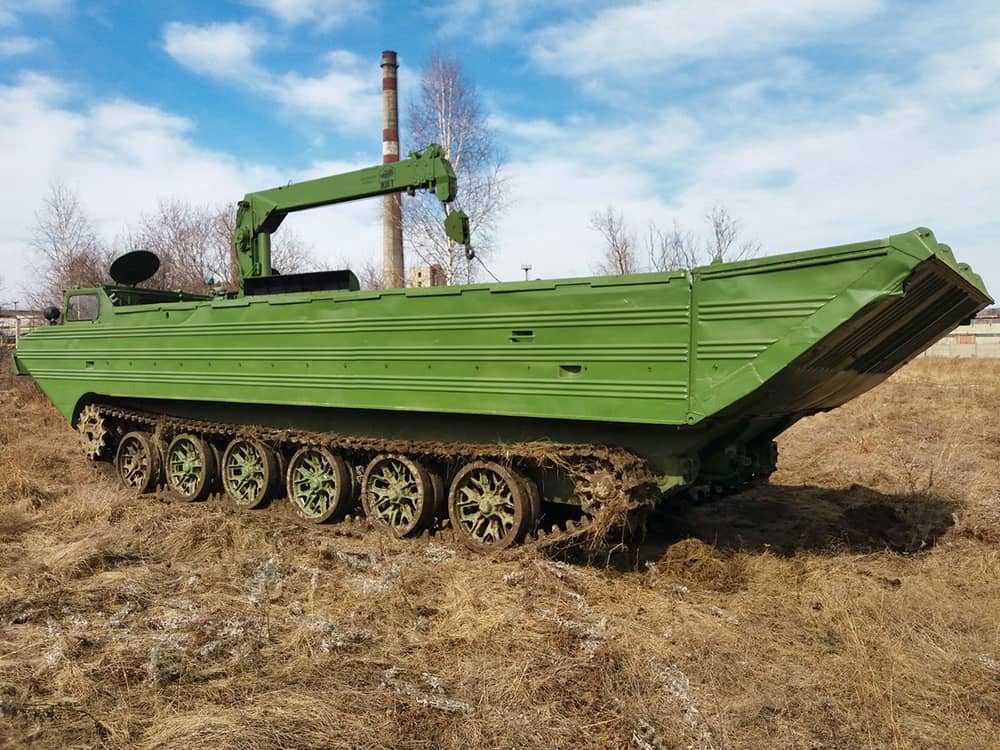

PTS-M (transporter)

The medium floating conveyor PTS-M is a design idea to combine the best qualities of the tank and the ATS-59 tractor and put them into a waterproof body to overcome water obstacles.

The PTS-M transporter is a conversion equipment designed for transporting people and cargo across water barriers. The tracked transporter is equipped with a V-54p engine with a power of 350 hp. Widely used by rescue services when carrying out rescue operations and liquidation of consequences in flood and flood zones.

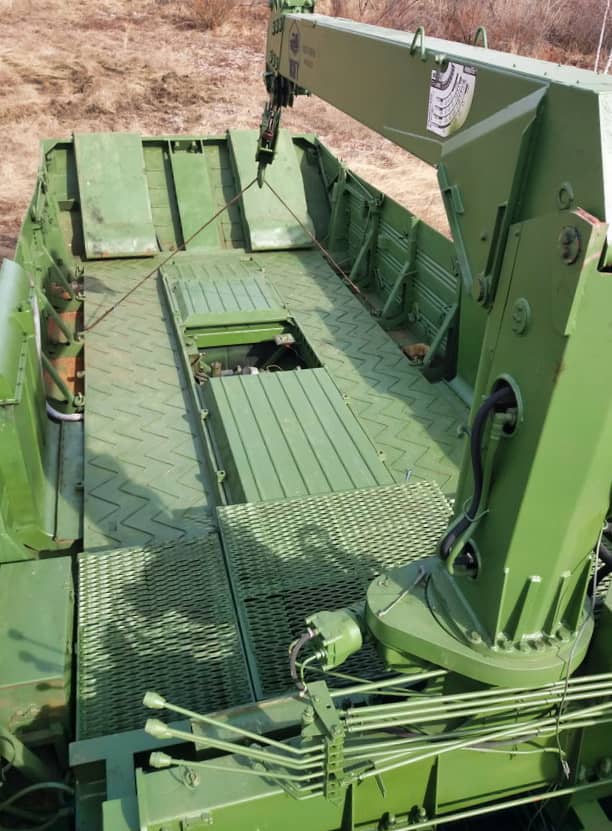

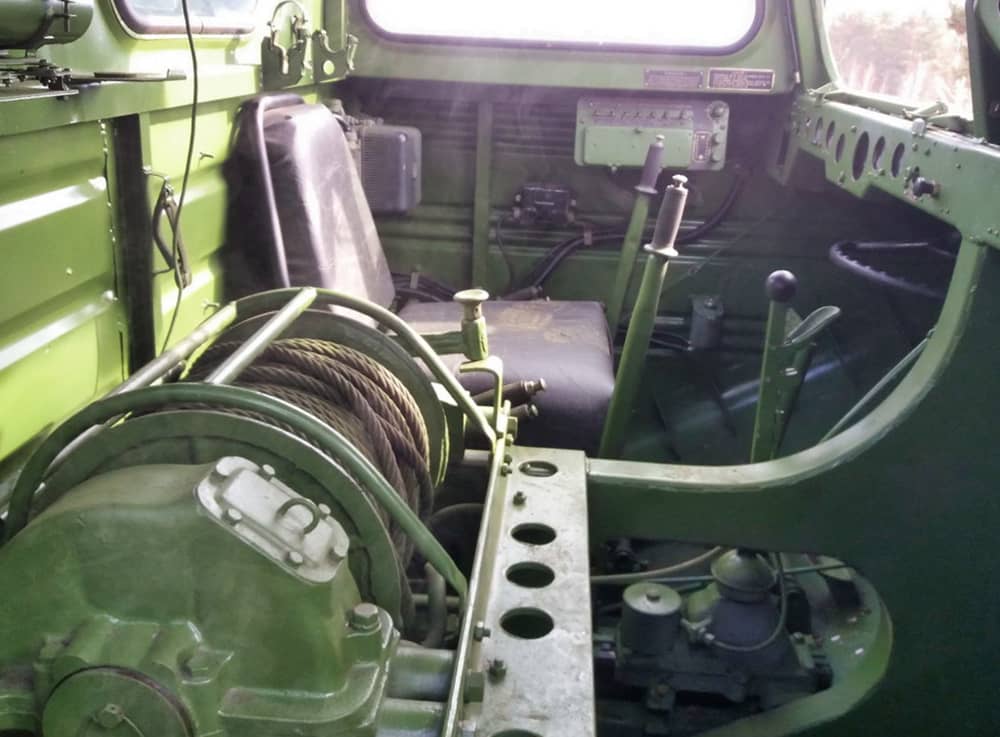

The PTS-M transporter differs from its predecessor PTS by the installation of a filter-ventilation system with heated cabin air, the presence of an awning with a tubular frame, a spotlight, a night vision device and equipment with an R-123 radio station. The area of the cargo platform has also been increased from 18.5 m2 (7.1 x 2.6 m) to 20.54 m2 (7.9 x 2.6 m), with the same load capacity (10 tons on water and 5 tons on land) .

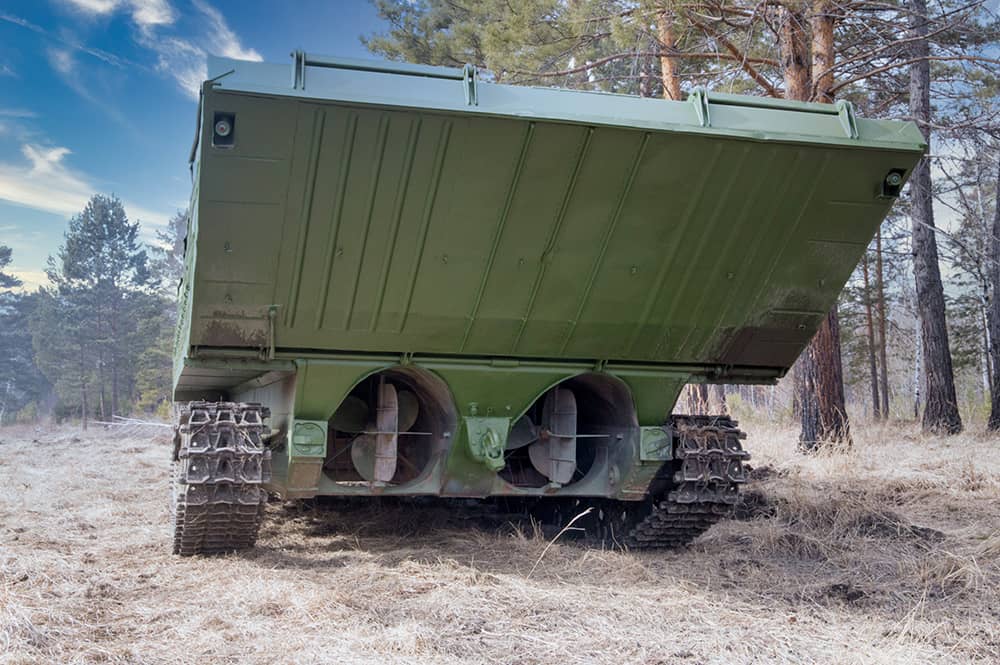

The marine equipment of the machine includes exhaust system extensions, a wave deflector and glazing protection, two powerful bilge pumps of 400 and 800 liters, two propellers and rudders. This ensures the vehicle's seaworthiness in sea conditions up to 4-5. The conveyor can also be used to perform transport tasks in wetlands.

Specifications:

Weight - 17.8 t

Clearance - 0.4 m

Track width - 2.8 m

Height of wall to be overcome - 0.65 m

Minimum turning life with trailer - 10 m

Average fuel consumption per 100 km with a load of 5 tons - 150 litre

Average fuel consumption per hour of operation on water with a load of 10 tons - 50 litre

Fuel range: on land with a load of 5 tons - 380 km

Fuel range: on water with a load of 10 tons - 12 h

Engine - B-54

Number of cylinders - 12

Cylinder arrangement - V-shaped, at an angle of 600

Power - 350 hp

Weight - 17 tons

Load capacity on water and approaches to obstacles - 5 tons

Load capacity on land (on the move) - 10 tons

Travel speed on a dirt road with a load of 5 tons - 25-27 km/h

Driving speed on land with a load of 5 tons - 42 km/h

Speed on water without load - 11.5 km/h

Movement speed on water with a load of 10 tons - 10.6 km/h

Angles of ascent and descent without load - 30°

Angles of ascent and descent with a load of 10 t - 15°

Roll angles without load - 20°

Roll angles with a load of 10 t - 10°

Angles of entry into and exit from water with a load of 10 tons - 15°

Length - 11,426 meters

Width - 3.3 meters

Height - 2.65 meters
